Product Parameters
| Model Number | SEF-200CCT |
| Beam Angle | 20° / 30° / 60° / 90° / 120° |
| Waterproof Grade | IP65 |
| Color | 3000K+6500K |
| Power | 100W / 150W / 200W / 300W / 450W |
| Lighting solutions service | Lighting and circuitry design |
| DIALux evo layout / CAD layout | |
| Certification | CE ROHs |
| Application | Live Event, Building, Park, etc |
| Warranty(Year) | 5 Years |
| Life time(Hour) | 50,000 |
| Power Factor (PF) | ≥0.9 |
| Control Methods | DMX Control / RF Remote Control |
| DMX Wireless Control | |
| Input Voltage(V) | AC 100~277V / DC 24V |
| LED | 3030 SMD |
| Ambient Temp. (℃) | -20~+50℃ |
| Storage Temp. (℃) | -40~+85℃ |
| Key Material | AluminumAlloy + Toughened Glass |
| Model | Power ±10% |
CCT | Efficiency ±10% |
Luminous ±10% |
| SEF-100CCT | 100W | 4000K | 131LM/W | 13100LM |
| 50W | 3000K | 122LM/W | 6100LM | |
| 50W | 6500K | 127LM/W | 6350LM | |
| SEF-150CCT | 150W | 4000K | 126LM/W | 18900LM |
| 75W | 3000K | 119LM/W | 8925LM | |
| 75W | 6500K | 128LM/W | 9600LM | |
| SEF-200CCT | 200W | 4000K | 125LM/W | 25000LM |
| 100W | 3000K | 124LM/W | 12400LM | |
| 100W | 6500K | 127LM/W | 12700LM |
Product Description

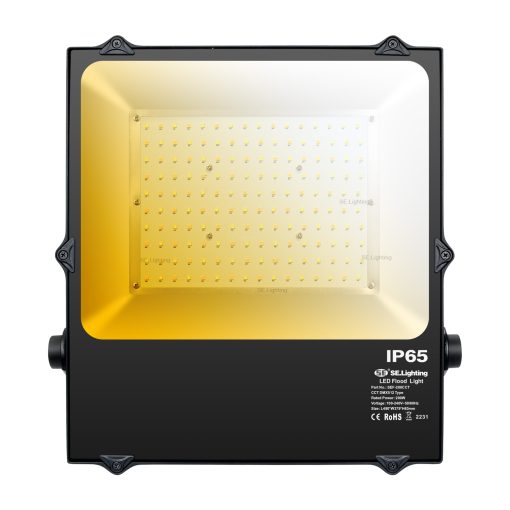

DMX LED Flood Light CCT 100W 150W 200W Multi Color Changing Flood Lights Type
- CCT RGB RGBW Flood Light 5 Years Warranty.
- RGB Control Methods: DMX Control or RF Remote Control or DMX Wireless Control. (DMX RGB RGBW Flood Light )
- Cable, Fast Connector, quick lock with securing lever.
- RGB RGBW LED Flood Light Adopting integrated Chip as light source with high lighting efficiency, good quality heat dissipation, low light degradation.
- DMX RGB RGBW Flood Light Aluminium alloy die cast sheel, good strength, and high quality heat dissipation. Anti corrosion and baking varnish surface, can be for outdoor using.
- RGB RGBW Flood Light Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options for lighting distribution, one is for focusing, another is for divergencing.
- RGB RGBW Flood Light High efficiency and high quality constant current drive, not only ensure the product stability, but greatly reduce the electricity consumption.
- DMX RGB RGBW Flood Light LED light source with low light decay, high lighting efficiency, stable light color, no glare and more favorable visual health.
- DMX512 and is the most common DMX stage light language. It is a digital communication that started simply with sending command information from the lighting controller to the dimmer.
Connection Method
DMX Type Connection
RF Type Connection
DMX Wireless Type Connection
Dimension
| Model | Size A(mm) | Size B(mm) | Size C(mm) |
| SEF-100RGB | 413 | 315 | 63 |
| SEF-150RGB | 440 | 349 | 63 |
| SEF-200RGB | 480 | 379 | 63 |
Packing Data
| Model | Size A(mm) | Size B(mm) | Size C(mm) |
| SEF-100RGB | 413 | 315 | 63 |
| SEF-150RGB | 440 | 349 | 63 |
| SEF-200RGB | 480 | 379 | 63 |
Application
LED Flood Light,DMX LED Flood Light,CCT Flood Lights,Multi color LED Flood Light,Color changing Flood Light, is usually used in Public Lighting and Industrial Lighting.
SE.Lighting’s CCT Flood Lights is suitable for a variety of Stages, include Concerts, Stadiums, Bars, Theater, Music Festival, Carnivals, Live Music, DJ & Disco, Weddings, Theatres, Trade Shows, Corporate Events, Houses of Worship.
Best CCT, RGB, RGBW, RGBCCT, DMX LED Flood Lights
DMX is short for”Digital Multiplex”, we can simplely understand it as a digital protocol. Nowadays, normally DMX is refered to DMX512(support maximum 512 channels, one color each chanel).
Our RGB LED Flood Light can show many different color effects by working with DMX512, we need to use an external DMX controller and add hardware parts to the lights. The program is held in the controller and the signal will be sent to the lights to generate different colors or effects. Our RGB LED Flood Light supports universal DMX512 controller as long as it supports standard DMX512 protocol. You can buy the controller from us or in your local market.
Our DMX RGB RGBW Flood Light can also be LED Stage Lights and can be used for Stage Lighting.
Our DMX RGB RGBW Flood Light is smart and can generate multiple color changing effects. Such as Flash, Strobe, Jumping, Fade, Smooth, etc. If working with a DMX controller, it can generate more complicated effects.
Our RGB RGBW LED Flood Light has 3 kinds of Control Methods, one is DMX Control, one is RF Remote Control, one is DMX Wireless.
Our DMX RGB RGBW Flood Light can generate better colors and beam angles, this is because we use our self-developed and self-designed solution, we improve the shortages for traditional LED Flood Lights.
Our DMX RGB RGBW Flood Light can be made from 100W to 500W, especially 500W. High Power is our advantage, it needs special technology.
The narrowest beam angle of our DMX RGB RGBW LED Flood Light is 20 degree, the widest beam angle is 120 degree. By using narrow beam angle, our lights can illuminate over 100 meters long distance.
If it is difficult to lay the DMX cables in your application, we can customize the wireless solution for you. By using this wireless solution, you only need to use one DMX controller and one DMX wireless transmitter, don’t need the extra layout for DMX cables.
Our DMX RGB Flood lights has obtained a series of certificates such as CE, RoHS, etc. If you has special requirement, you can also tell us directly.
Our DMX RGB RGBW Flood Light are one of the most widely used light sources both indoors and outdoors, and provide even illumination that washes across an entire area. They are very commonly used in night lighting and as part of the decorations of a place. This is especially the case for the DMX RGB Flood Light, and with just a change in color, one can completely change the atmosphere of a place. As such, DMX RGB Flood Light are seen at wedding ceremonies, holiday parties, Stages, include Concerts, Stadiums, Bars, Theater, Music Festival, Carnivals, Live Music, DJ & Disco, Weddings, Theatres, Trade Shows,
Corporate Events, Houses of Worship, as well as part of the landscape decorations, where they are the background lighting of choice.
Below is an introduction to 4 of the most popular DMX RGB LED Flood Light for your consideration.
IP65 Waterproof: DMX RGB Flood Light are made from a waterproof material, so you can safely install them in your garden, backyard, by poolside or other outdoor places.
DMX LED RGB Flood Light Easy to Install: All you need to do is to connect it to the power supply, no wiring is required. The colored outdoor LED RGB Flood Light fixture can be adjusted 180°, so it is very convenient to install and use, whether it is on the ceiling, the ground or the wall.
DMX LED RGB Flood Light, The product is equipped with a remote control and DMX Controller, and adjustable light colors, Additionally, you can also adjust the brightness, as well as turn on flashing mode and control the speed of the color change. With these options, you can easily create different lighting effects.
On top of all this, DMX LED Flood Light serve a practical function. Just like traditional DMX Flood Light, they light up your property, which can deter thieves. So not only are you making your yard more festive, but you’re protecting your home at the same time.
More videos of our DMX Flood Light on Youtube.
